Linear Actuator

  • Specification

    Item Linear Actuator
    Material Housing is made from aluminum alloy and S41C. Internal gears are made from SMF5030.
    Voltage 12V
    Reduction Ratio 25:1
    Weight 2kg /set (gearbox with motor)

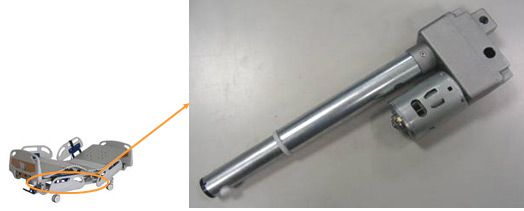

    Application Hospital bed, medical bed, massage chair etc.
  • Linear Actuator

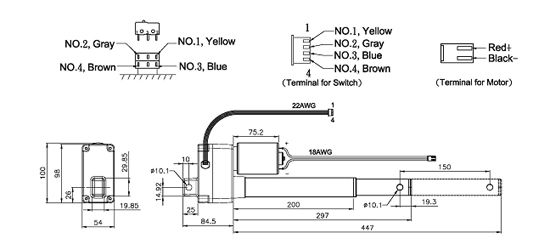

  • Specifications

    Type: ***** Model No: GM-D12
    Dimension: Gearbox 100x54x84.5 (mm) Motor: 987-9009F-R/102
    Voltage: DC 12V Currmt: 4.5A (No Load)
    Motor Speed: 14,500 rpm Screw: 5/8-8 Thread
    Largest Stroke: 150 mm Gearbox Mounting Hole: Ø10.1±0.1mm
    Rod Mounting Hole: Ø10.1±0.1mm Motor Wire Length: 254 mm
    Switch Wire Length: 200 mm Application: *****
    Factory Location: Taiwan and Guangdong Province of China
